Solid State Power Amplifier Mission 778X
Regular price
€599,00
VAT included in price for European Union countries and may be adjusted based on delivery country at check-out.
Average shipping time : 4 to 5 weeks. Shipping is free within European Union (except for specific territories) above 99€ purchase up to 50kg. Shipping costs on quote above 50kg – quote request to be send to : contact@audiosoundmusic.com. There is no return policy for countries outside of the European Union.
Over the past 45 years, Mission has become famed for loudspeakers that break the norms of price-point, technology and design. Yet, in its illustrious history, Mission was also responsible for some equally prolific hi-fi electronics.
2023 Select Award Best Hifi amplifier under £600
Thus, the Mission 778X is a revisit of a classic Mission amplifier concept that was the Mission 778 – an affordable integrated amplifier that offered simplicity in operation but over-performed in the driving of loudspeakers.
Today’s Mission 778X maintains the influence of simplistic operation, large tractile controls, and a multitude of inputs. It’s a compact, ’80s inspired integrated amplifier that is fully equipped to meet the demands of modern music lovers, from vinyl fans to digital streamers. Modern twists, such as LED level indicators and all-encompassing connectivity options, make the 778X a truly contemporary integrated amplifier. Boasting a genuine 65 watts (@4 ohms) of power via an utterly modern and refined signal path, to standards akin to the exemplary standards to which Mission loudspeakers are developed.
Design Philosophy and Core Technology: Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
ESS Sabre32 ES9018K2M Reference Chip
Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
Dedicated High-performance, Low-noise MM Phono Stage
Headphone AMP With High-speed Output Signal Transition
USB Upgrade Support
Large Tractile Controls With LED Level Indicators

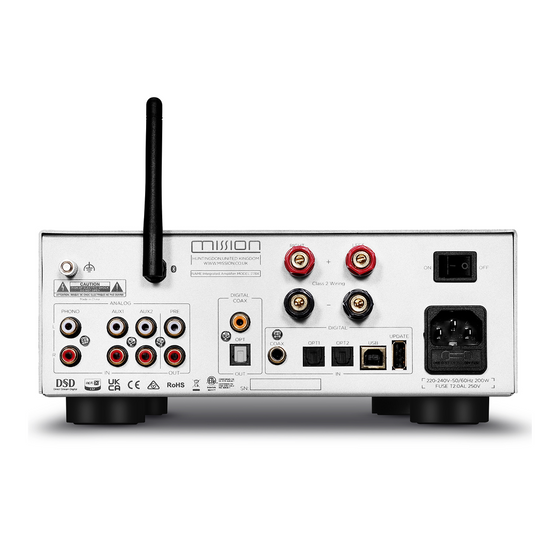

Inputs: 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC), 2 x AUX,1 x RCA (Phono MM)
Outputs: 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
Sampling Frequency Optical / Coaxial: 44.1kHz-192kHz;
PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
Preamplifier Section
- Gain (max.): +0dB (Line), +47dB (Phono MM)
- Input Sensitivity: 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance: 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD): <0.003%
- Frequency Response (ref. 1kHz): 20Hz-20kHz (±0.1dB)
- PRE Output Level: 2.1Vrms (max.)
- PRE Output SNR: >110dB (A-weighted)
DAC
- D to A Converter: ESS Sabre32 ES9018K2M
- Resolution: 32-bit
- Max. Sampling Frequency Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz): 2.1Vrms
Power Amplifier Section
- Gain: +31dB
- Rated Power Output: 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz): 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD): <0.005% (30W / 8 ohms)
- Input Sensitivity: 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR): >108dB (ref. 45W, A-weighted)
- Crosstalk @1K: >80dB (ref.1W)
- Standby Power Consumption: <0.5W
Headphone Amplifier
- Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
- Output Impedance: 4.7 ohms
- Load impedance: 20-600 ohms
General
- Dimensions (mm) (W x H x D): 236x98x380.6
- Carton Size (mm) ( W X H X D): 450x392x175
- Net Weight: 6.3kg
- Finish: Black / Silver
- Power requirements (depending on region): 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories: Power Cord, Remote Control, User Manual, Antenna
